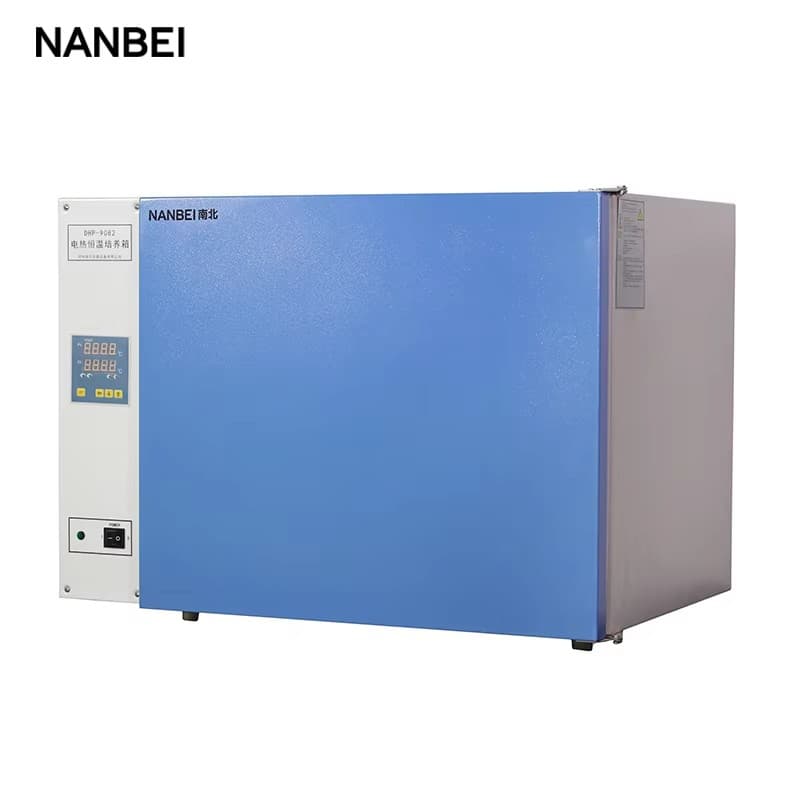

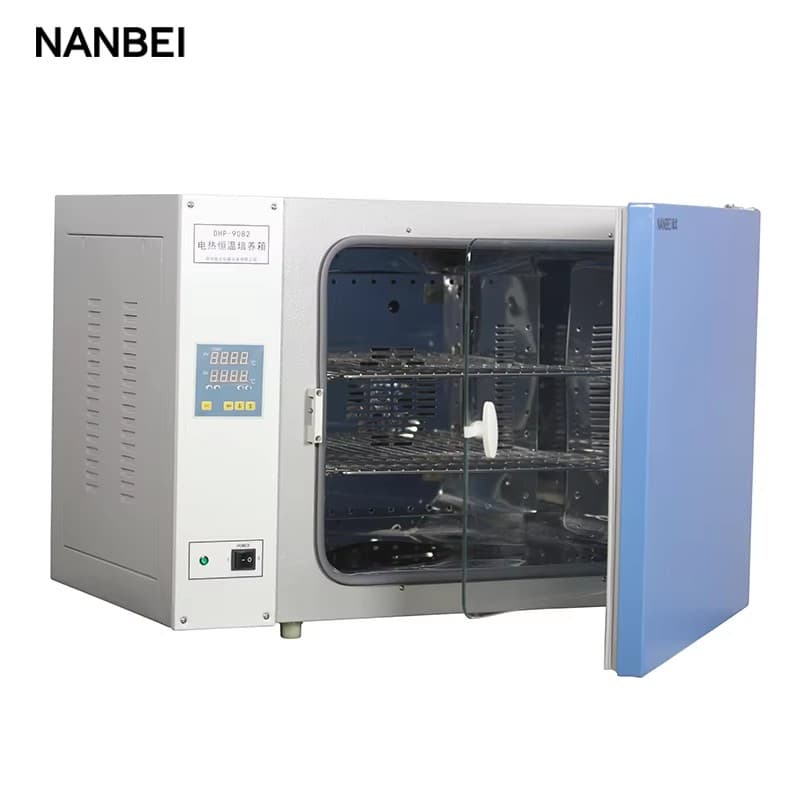

The electric thermostatic incubator is a piece of laboratory equipment that uses electric heating to maintain a constant temperature environment within the chamber; it typically consists of a chamber, a heating system, a temperature control system, a convection fan, and a control system.

Common simple faults and troubleshooting methods for constant-temperature incubators:

1. No response after powering on

Step 1: Check the power connection

* Check if the power cord is properly connected and ensure good contact between the plug and the socket.

* Check the power distribution box for output to rule out external power outages or tripped circuit breakers.

Step 2: Check the fuse

* Check if the fuse has blown.

* If there is only slight blackening, simply replace the fuse with one of the same specifications.

* If there is severe blackening, it is usually caused by a burnt-out convection fan; the fan must be replaced before replacing the fuse.

2. Failure to heat

Step 1: Check the heating element

* Use a multimeter (set to the 10-ohm range) to measure the resistance of the heating element.

* The normal value is between approximately 50 and 200 ohms.

* If the measured resistance is abnormal (e.g., infinite or near zero), the heating element needs to be replaced.

Step 2: Check the convection fan

* Confirm that the fan is operating normally.

* Fan failure prevents heat from being distributed evenly, affecting heating performance.

Step 3: Check the temperature controller

* Confirm that the temperature controller is functioning correctly.

* Check if the set temperature is correct and if the output signal is normal.
